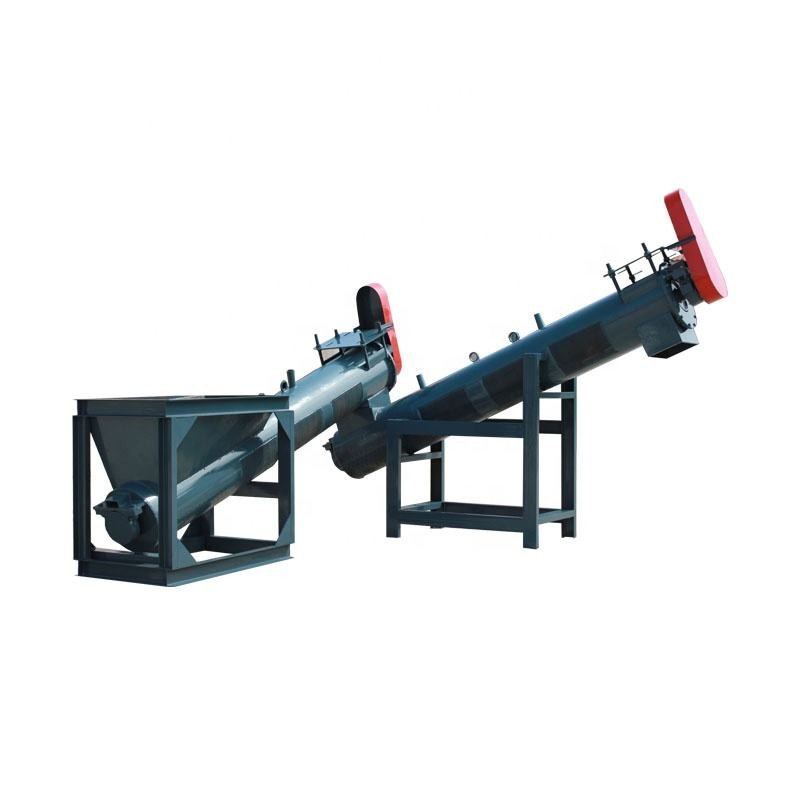

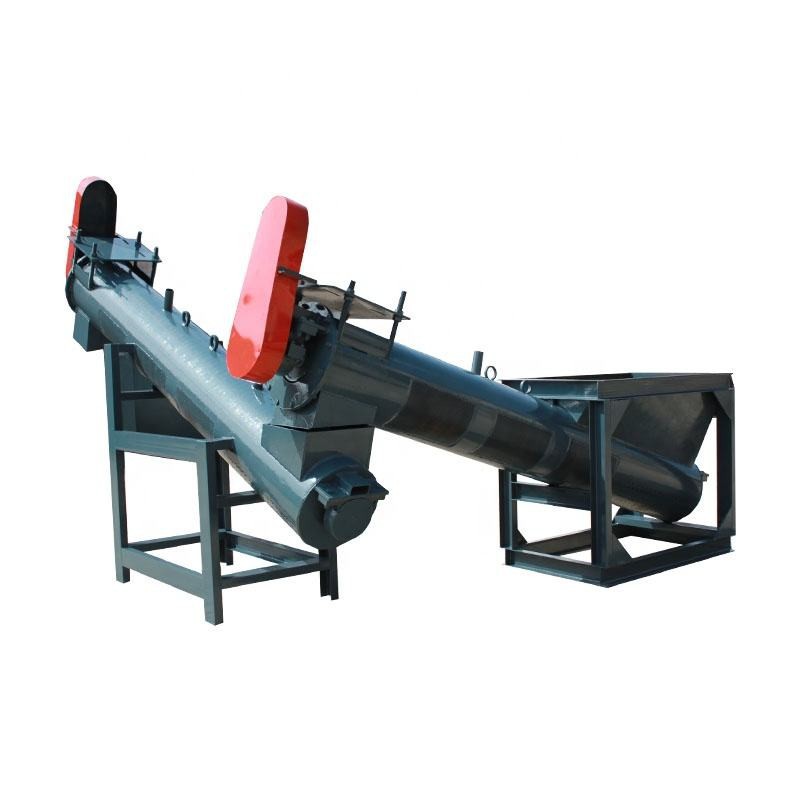

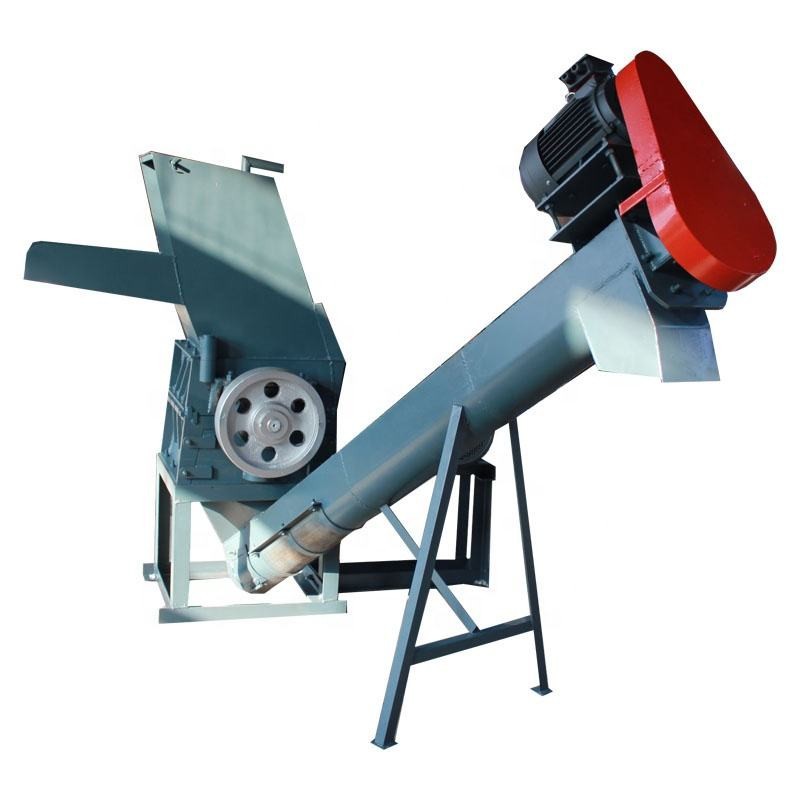

Friction Washing Machine
Laizhou Yuening Machinery offers the YN377 friction washing machine for plastic recycling lines. This machine is built to clean plastic materials with light to moderate dirt, and works well for PP, PE, HDPE, LDPE films, plastic bags, woven sacks and regular crushed plastic scraps. It provides effective cleaning before the plastic goes to drying or pelletizing.
Features
friction washing machine YN377
Laizhou Yuening Machinery offers the YN377 friction washing machine for plastic recycling lines. This machine is built to clean plastic materials with light to moderate dirt, and works well for PP, PE, HDPE, LDPE films, plastic bags, woven sacks and regular crushed plastic scraps. It provides effective cleaning before the plastic goes to drying or pelletizing.
The YN377 runs on a 3–6 kW motor and 380V industrial power supply, with a rotation speed of 800 r/min. The inclined cylinder with screen holes lets plastic pieces rub against each other during operation, which helps remove surface dirt, ink and light impurities. It can process 500–1000 kg of material per hour, making it suitable for small and medium recycling lines.
This friction washing machine measures 2000*800*600mm and weighs 350 kg. Its compact size allows easy installation into most existing production lines. The strong frame and wear-resistant parts ensure stable performance during daily long-time running. Operation is simple, and maintenance is not complicated, which helps reduce downtime and labor cost.
The YN377 can handle both soft plastic films and hard crushed materials. It provides reliable daily cleaning with stable speed and low energy use. For recycling plants with normal cleaning needs, it is a practical and economical choice.
Specifications
|
Model |
Type377 |
|
Boundary dimension(mm) |
2000*800*600mm |
|
Weight(kg) |
350kg |
|
Rotate speed(r/min) |
800r/min |
|
Voltage(V) |
380v |
|
Power(kw) |
3kw-6kw |
|
Maximum Capacity(kg/h) |
500-1000kg/h |
Key Advantages
- Wide application for different plastic materials, removing common dirt and preparing clean flakes for further processing.
- Compact structure saves space and fits well into most existing washing lines.
- Stable running speed ensures consistent cleaning quality and lower energy cost.
- Durable structure and wear-resistant parts support long service life.
- Easy to operate and maintain, reducing downtime and improving production efficiency.
FAQ
Q: What materials can the YN377 handle?
A: It is mainly used for PP/PE/HDPE/LDPE films, plastic bags, woven sacks and common crushed plastics with light to moderate dirt.
Q: What is the difference between this machine and high-speed friction washers?
A: YN377 is for daily general cleaning with stable performance. High-speed models are more suitable for heavily dirty materials and larger output.
Q: Do you support customized recycling lines?
A: Yes, we can provide customized solutions according to your material type, required capacity and local voltage.
