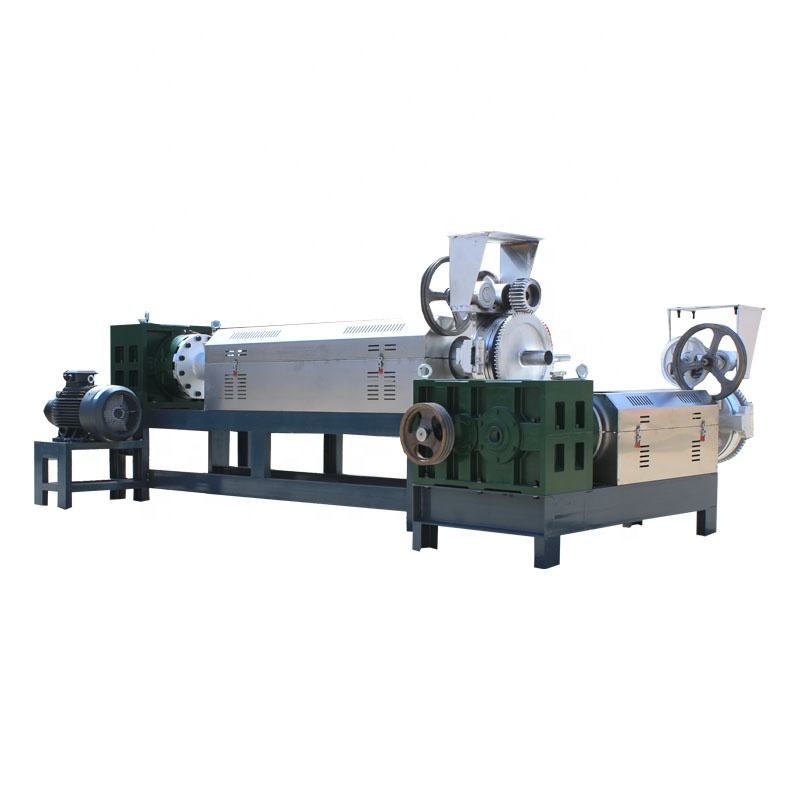

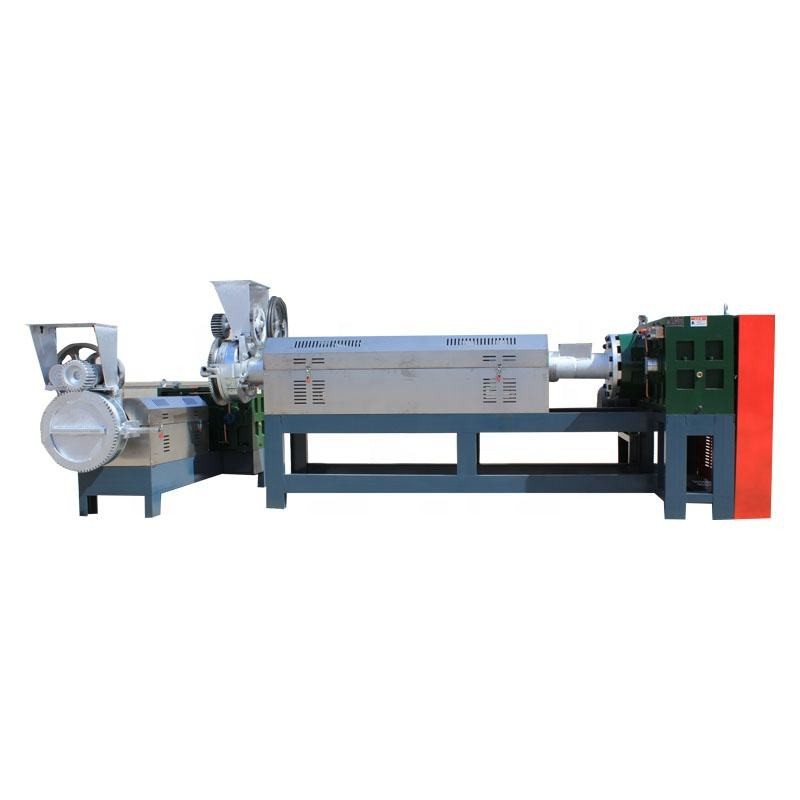

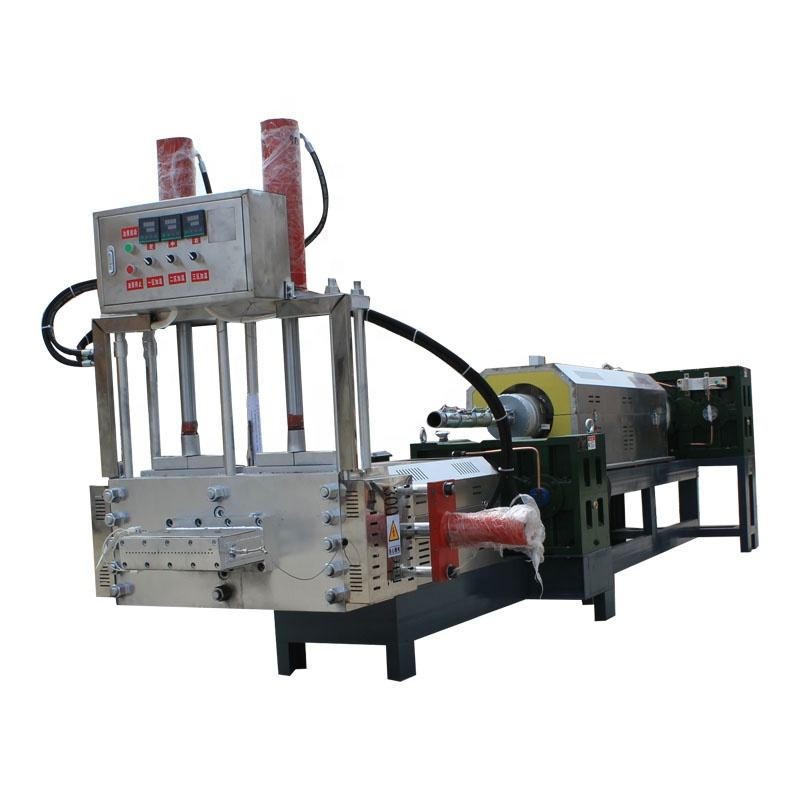

Plastic Film Pelletizer

Designed exclusively for plastic film recycling, our Plastic Film Pelletizer is optimized for thin, flexible materials such as LDPE, HDPE, and PP films, solving common painpoints including tangling, uneven plasticization, and low output. Equipped with specialized anti-winding screw structures and reinforced feeding systems, it efficiently converts post-consumer and industrial plastic film into high-density, uniform pellets, making it the preferred solution for professional film recycling plants.

Send Inquiry

Features

This pelletizer adopts a custom-developed screw and barrel assembly specially engineered for soft, lightweight film materials. The unique screw profile prevents film from wrapping around the shaft during extrusion, ensuring stable feeding and consistent plasticizing throughout production. Unlike general-purpose granulators, our film-specific model maintains steady performance even when processing wet or lightly contaminated film, greatly reducing jams and unplanned downtime.

Energy efficiency is built into every model. The high-efficiency heater bands and precise temperature control system melt film materials quickly and evenly, lowering energy waste and optimizing production cost per kilogram. The power configuration is matched to each model's capacity:

YN135: 30kW main motor, 60kW heating power
YN150 & YN160: 45kW main motor, 120kW heating power
YN180: 55kW main motor, 160kW heating power
YN210: 75kW main motor, 240kW heating power

All models run on 380V industrial voltage and deliver output from 150kg/h up to 500kg/h,providing cost-effective performance for both small-scale recycling workshops and large-scale film processing lines.

All models run on 380V industrial voltage and deliver output from 150kg/h up to 500kg/h, providing cost-effective performance for both small-scale recycling workshops and large-scale film processing lines.

Constructed for long-hour continuous operation, the pelletizer uses wear-resistant materials for key components such as gearboxes, screws, and bearings. The heavy-duty structure ensures stable running under continuous load, even when dealing with film containing sand, dust, or minor impurities. This results in a low failure rate, extended service life, and reduced long-term maintenance expenses.

Operation and maintenance are simplified for daily production. The PLC control system comes with pre-set programs for different film types, allowing operators to adjust temperature, screw speed, and feeding rate with ease. Fault self-detection and alarm functions help identify potential issues in advance, while the quick-release design simplifies cleaning, screw inspection, and blade replacement.

With sustainability as a core design principle, the machine emphasizes energy saving and low emission operation. Optional exhaust gas purification systems and soundproof configurations are available to meet stricter environmental requirements. By turning waste agricultural film, packaging film, and industrial stretch film into reusable pellets, this machine helps recyclers realize circular economy benefits while improving profitability and reducing environmental pressure.

FAQ

Q: What types of plastic films can this pelletizer process?

A: This machine is ideal for LDPE, HDPE, and PP films, including post-consumer packaging films, agricultural films, and industrial stretch films. It can also handle lightly contaminated films with proper pre-washing.

Q: Does the machine prevent film tangling during processing?

A: Yes. The specially designed screw geometry and anti-winding features prevent film tangling, ensuring smooth material flow and reducing jams common with general-purpose machines.

Q: What is the typical output for film processing?

A: Output depends on the film type and condition, but the machine's optimized design ensures high throughput. The maximum capacity ranges from 150kg/h to 500kg/h across different models, tailored for film feedstocks.
