Waste Plastic Crusher
Laizhou Yuening Machinery Co., Ltd. is a professional manufacturer of waste plastic recycling equipment. Our waste plastic crusher is widely used in the pretreatment stage of various plastic recycling projects. It is designed to crush different kinds of waste plastic materials into small pieces or flakes, providing convenient and efficient processing for the subsequent washing, drying and pelletizing procedures.
Features
Laizhou Yuening Machinery Co., Ltd. is a professional manufacturer of waste plastic recycling equipment. Our waste plastic crusher is widely used in the pretreatment stage of various plastic recycling projects. It is designed to crush different kinds of waste plastic materials into small pieces or flakes, providing convenient and efficient processing for the subsequent washing, drying and pelletizing procedures.

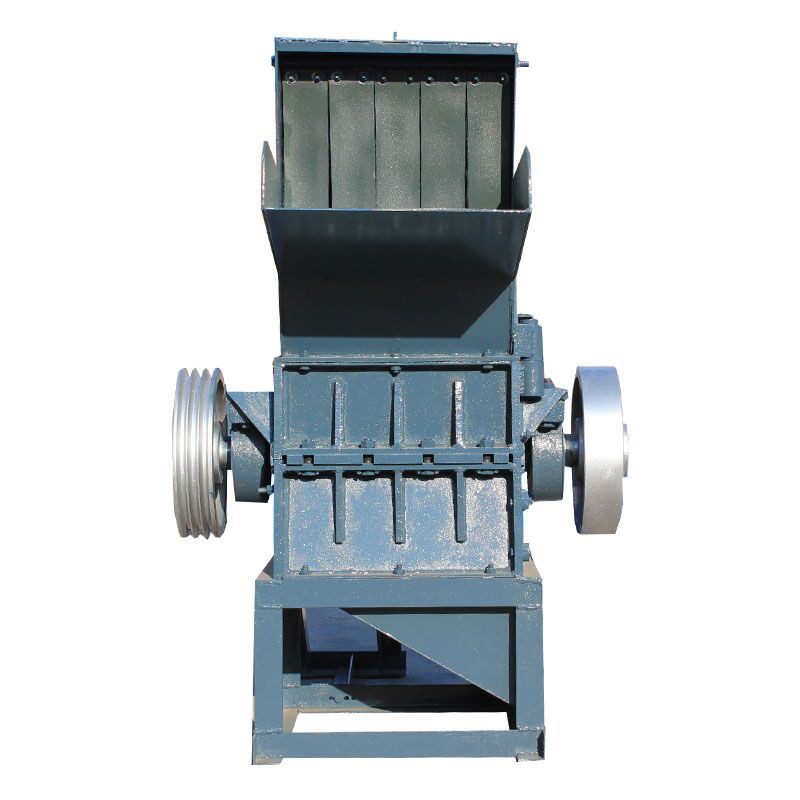

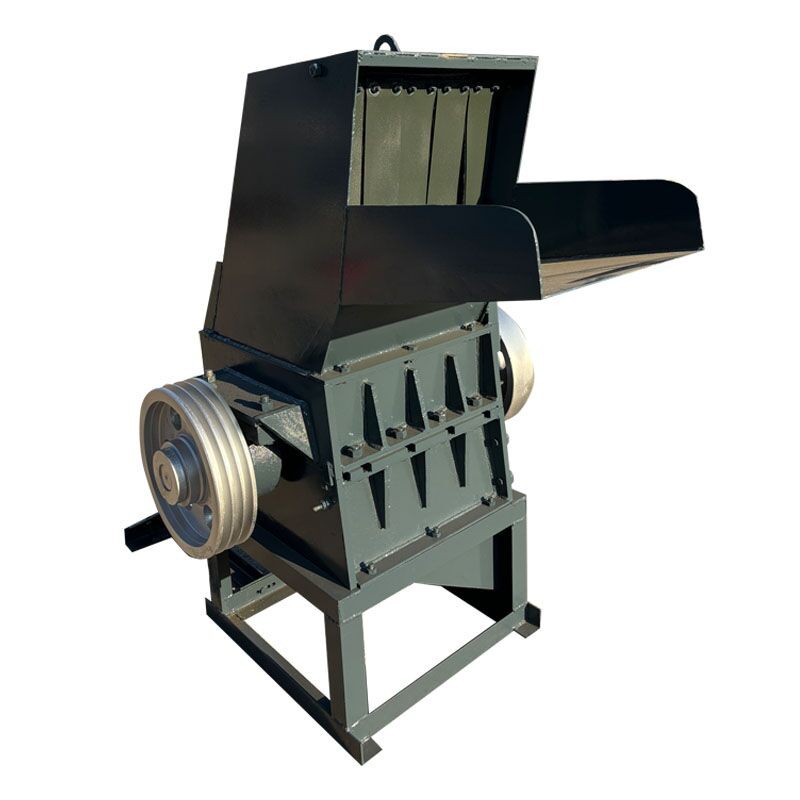

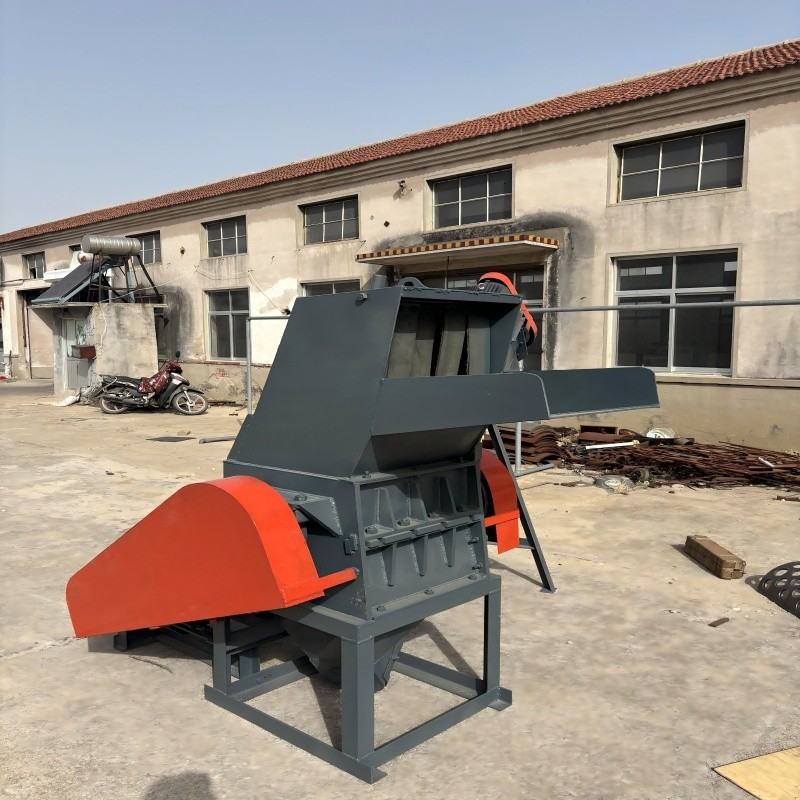

This waste plastic crusher adopts a heavy-duty frame structure, which ensures stable running and strong crushing capacity even under long working hours. The blades are made of high-quality alloy steel with high hardness and good wear resistance. Users can replace the blades easily when necessary, which greatly reduces maintenance costs. The machine is also equipped with a reliable safety protection system to avoid accidental operation and ensure operator safety.
With strong adaptability, our waste plastic crusher can handle hard plastic, plastic pipes, plastic containers, plastic blocks, and many other waste plastic products. It features low noise, large feeding hopper, high output and easy operation. Many overseas customers choose this machine as the essential equipment in their plastic recycling plants.
Specifications
|
Model |
Type400 |
Type500 |
Type600 |
Type800 |
Type1000 |
|
Boundary dimension(mm) |
1150*550*900mm |
1250*600*1000mm |
1300*700*1100mm |
1700*900*1200mm |
2000*1050*1400mm |
|
Weight(kg) |
450kg |
600kg |
1000kg |
1800kg |
3200kg |
|
Power(kw) |
15kw |
18.5kw |
30kw |
55kw |
75kw |
|
Rotate speed(r/min) |
800r/min |
800r/min |
800r/min |
800r/min |
800r/min |
|
Voltage(V) |
380v |
380v |
380v |
380v |
380v |
|
Rotating diameter(φ) |
φ380 |
φ380 |
φ420 |
φ480 |
φ550 |
|
Number of blades(qty) |
3 moving blades and 2 fixed blades |
3 moving blades and 2 fixed blades |
6 moving blades and 4 fixed blades |
6 moving blades and 4 fixed blades |
6 moving blades and 4 fixed blades |
|
Blade Material(mat) |
60S12Mn |
60S12Mn |
60S12Mn |
60S12Mn |
60S12Mn |
|
Blade size(mm) |
400mm |
500mm |
300mm |
400mm |
500mm |
|
Box thickness(mm) |
18mm |
20mm |
25mm |
30mm |
30mm |
|
Hydraulic flipping box |
no |
no |
have |
have |
have |
|
Maximum Capacity(kg/h) |
400-500kg/h |
450-550kg/h |
1000-1200kg/h |
2000-2500kg/h |
2500-3000kg/h |
FAQ
Q: What materials can this waste plastic crusher process?
A: It can crush most common waste plastics such as PE, PP, PET, hard plastic, plastic pipes, barrels, plates and blocks.
Q: How long is your delivery time?
A: We maintain a 1,500+ square meter on-site inventory workshop to ensure fast order fulfillment. For standard equipment with sufficient stock, we typically ship within 5–10 business days after order confirmation. For custom-engineered equipment tailored to your specific production needs, the lead time is 20–30 business days. We always prioritize your timeline and will make every effort to expedite delivery whenever possible.
Q: What if the machine is damaged during operation?
A: Within 12 months of receiving the goods, we will provide free replacement parts for functional failures caused by defects in product materials or workmanship. We do not cover unauthorized disassembly, modification, or third-party repairs; physical damage such as accidental drops, crushing, and liquid ingress; improper operation (e.g., voltage mismatch, use of non-standard parts); or force majeure (floods, fires, etc.). Thank you for your understanding and support!
